SPECIFICATIONS
AI Functions: Human Detection
Alarm Type: Local Alarm,FTP Photo
Audio Output: Two Way Audio
Brand Name: XM
Camera Supported Wifi Frequency: 2.4GHz WiFi (Do not supported 5G WiFi)
Certification: CE,FCC,RoHS
Color: WHITE
Color Night Vision: No
Connectivity: WIFI(2.4GHz)
Dimensions (L x W x D)(mm): 162X131X92mm
High Definition: 3.0 Megapixels,3.0MP(HD)
High-concerned chemical: None
IP Rating: Other
IR Cut Filter: Yes
IR Distance(m): 0-10M
IR LED: 8 IR leds
Installation: Normal,Pendant Mount
Internal Storage: None
Lens (mm): 3.6mm
Lens Quantity: Single Lens
Megapixels: 3 MP
Minimum Illumination(Lux): 0.01
Model Number: JF-R3C
Movement Range(Tilt): 0°-360°
Operating Temperature: -10°-60°
Origin: Mainland China
Power Consumption(W): 4W
Power Mode: Mains Electricity
Power Source: Normal
Power Supply: Normal
Power Supply(V): 5V
Scene: Indoor
Sensor: CMOS
Sensor Brand: SmartSens
Shell Material: Plastic
Single: H.265X
Style: PT Camera
Supported Mobile Systems: iOS,Android
Supported Operating Systems: Windows 7,Windows 98,Windows 8,Windows XP
TF Card: None
Video Compression Format: H.264,H.265
Viewing Angle : 80°
Zoom: None
Zoom type: None
is_customized: No

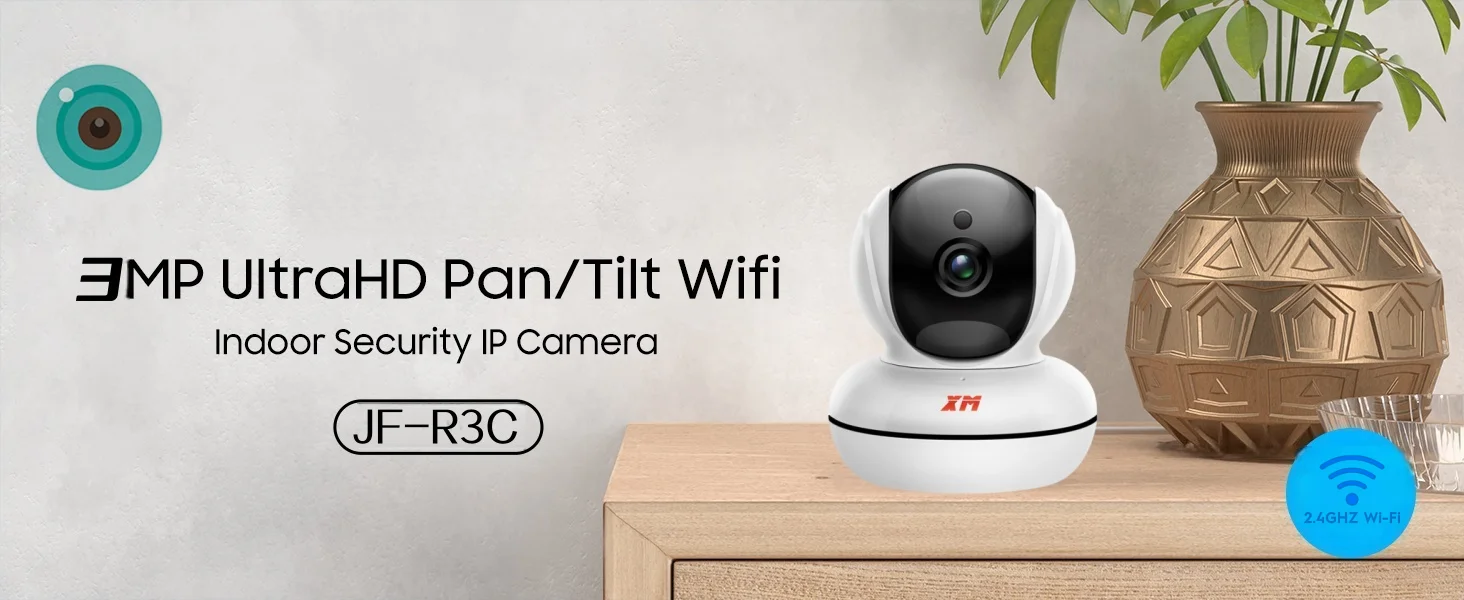

PTZ IP WiFi Camera
Plug and Play, easy to install
With a free, easy-to-use app, you can view security cameras from virtually anywhere in the world.
(This product only supports 2.4G WIFI, because camera WIFI does not support 5G network)
Real-time two way audio communication
Camera has built in microphone and speaker.
Never miss a moment with your family.

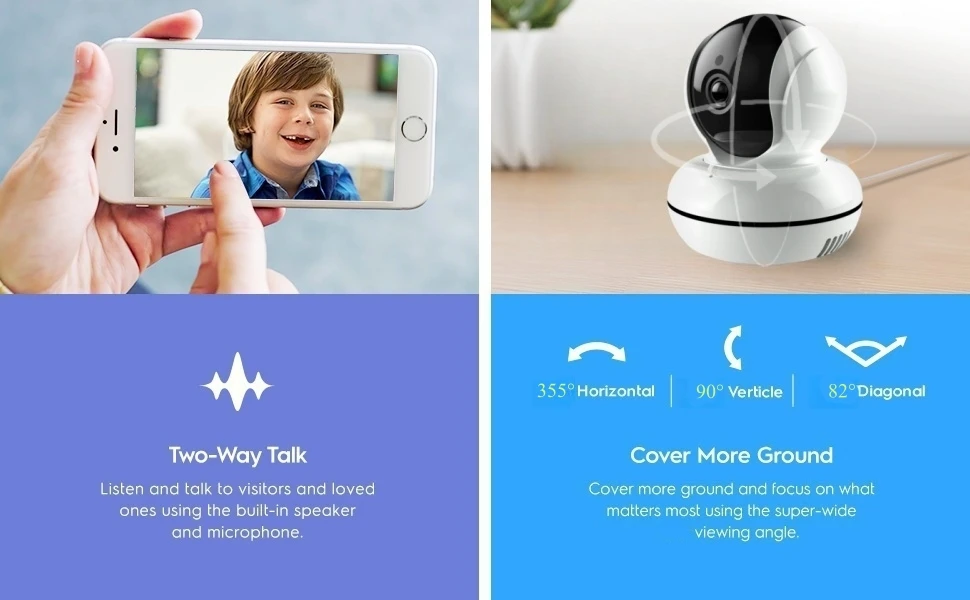

355°PTZ pan tilt rotation Vertical 90°
The smooth 350 degree pan allows you to monitor videos from different places. Control the movement of the camera. Through the mobile APP control software, you can monitor different location videos.
Intelligent humanoid detection
Integrated AI enhanced humanoid detection algorithm,when it detects suspicious dynamics,it can automatically capture its motion trajectory,track shooting,and push image alarm message in real time. The effective alarm is more accurate
2K 3.0MP Resulution OUT PUT

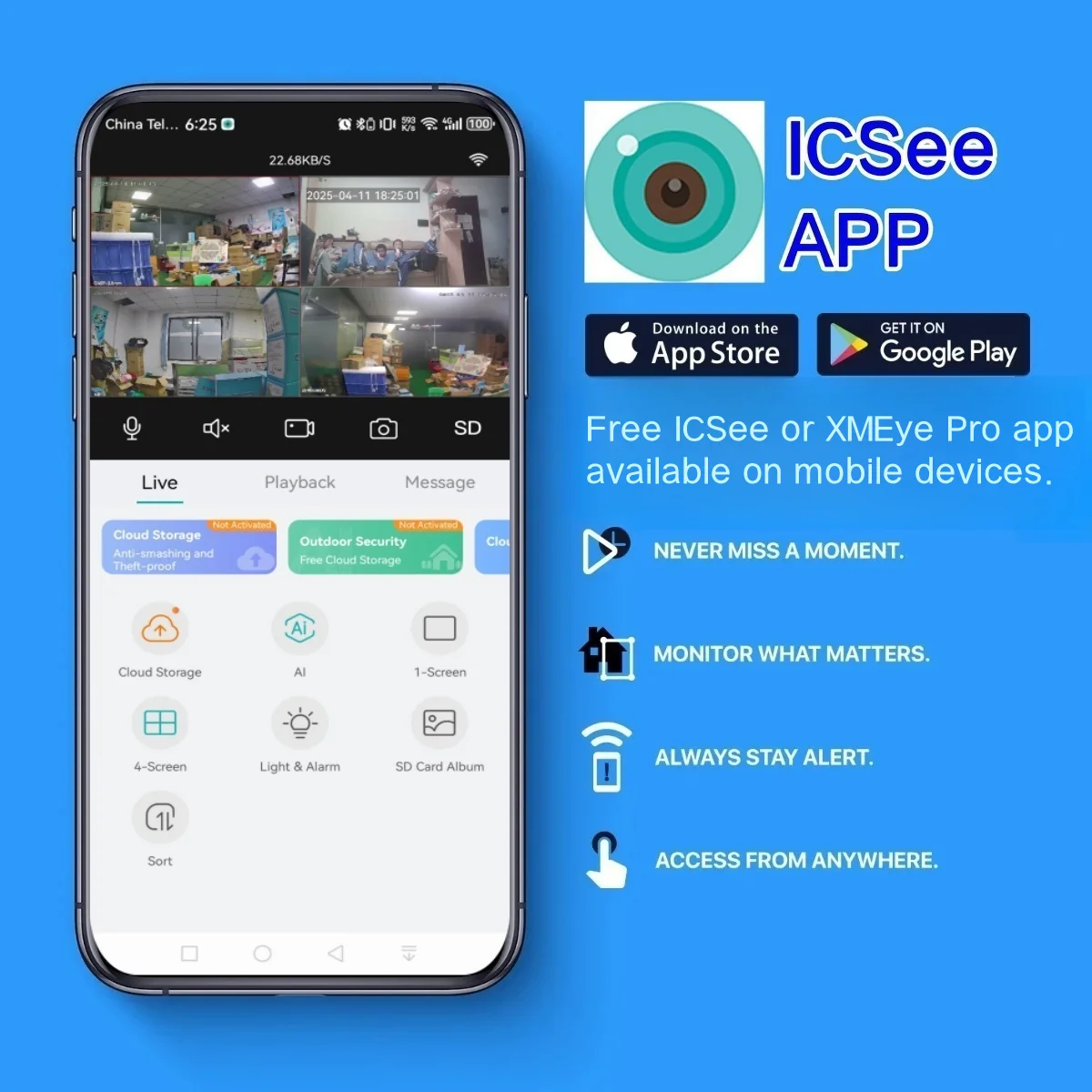

Enter Mobile App For Setting
.
Produt introduction
Highlights:
Wifi camera: Support remote viewing on mobile devices. for iPhone/Android supported.
Specification parameter
systemMain Processor Dual-core 32-bit DSP (XM530V200), pure hard compression, watchdog
image sensor High performance CMOS sensor
Operation System Embedded LINUX operating system
Video Compression Smart H.265X
APP Super Look (Android and IOS)
Video High Definition 3MP
Image resolution Main stream: 2048*1536@12fps; Substream: 800*448@12fps
Minimum illumination 0.01LUX/F1.2
Lens 3.6mm
Perspective 82°
Turn video Upside down/Turn around
Infrared Night Vision
Number of lights 8 PCS IR LED
PTZ PTZ control Rotation Angle level :355°; Vertical: 90 °
Turn PTZ Upside down/Turn around
Audio Coding standard G.711
Mitou Support
Two-way Speech Support
Record management Video file size ≈6G/day
Record Mode Manual record, motion detection record, scheduled record, alarm record

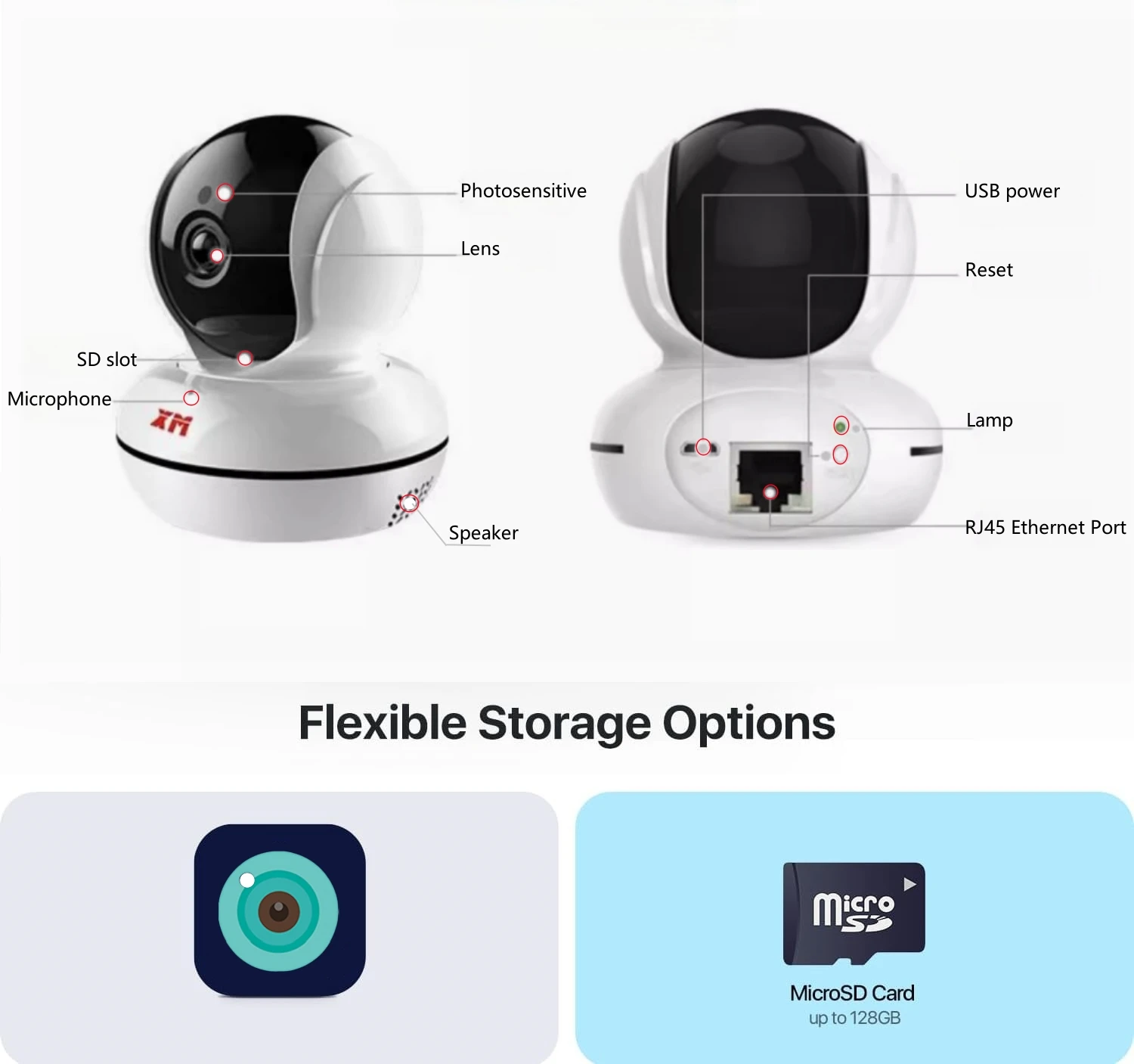

Video storage TF Card/Cloud
storage support TF card（max 128GB) or cloud storage(Defult not include, need choose in link)
Remote playback Support
Image capture Support
Network WIFI 2.4G WIFI 802.11b/g/n
Pairing Sweep QR code，Network Cable connection，AP Hotspot Addition
Network Protocol Support TCP/IP, ONVIF, RTSP
extension Reset key Support
Human tracking Support
360degree coordinate positioning Support
power supply Power DC 5V 1.6A
work environment Suitable place indoor、Home、shop、School、factory；
Installation mode Wall mounted
Working Temperature -20℃－＋55℃
Working humidity 10%－90%
